Leather Cutter Machine Co2 Laser Cutter 90W with 900*600mm Working Area

Jinan Upgoal Mechanical Equipment Co.,Ltd
Jinan Upgoal Mechanical Equipment Co.,Ltd
Province/State: Shandong
Country/Region: China
Tel: 86-183-53188251
Contact Person:
Mr Teken Quan

Leather Cutter Machine Co2 Laser Cutter 90W with 900*600mm Working Area

Brand Name : UPGOAL
Model Number : UG-9060L
Certification : CE/FDA
Place of Origin : Jinan City, Shandong Province, China
MOQ : 1 set
Price : USD 2020-USD 2260 FOB QINGDAO
Payment Terms : T/T, L/C, Western Union, MoneyGram, D/A, D/P
Supply Ability : 200 sets/month
Delivery Time : Within 7 working days
Packaging Details : One plywood case, 1480*1145*1290mm, 320kg
Effective working area : 900*600mm
Laser Type : Co2 sealed-off laser tube
Laser tube power : W2 series, Reci, Beijing (Rated power: 90W, max. Power: 100W)
Working table : Honey comb and knife strip, double working table
Driver mode : 3 phases stepper motor and Driver, Yako brand
Guide rail : Linear square guide rail ( Hiwin,Taiwan)
Transmission : Belt transmission
ontrol system : RuiDa RDC6442S with WIFI Router
Control software : RDWorks V8
Control panel : DSP offline
Type of cooling : Industrial chiller CW-5000 cooling
Blow-off system : Air pump for the laser head Air blower for the machine
Voltage : AC 220V±10% 50/60Hz, single phase or AC 110V±10% 50/60Hz, single phase
Contact Now

Leather Cutter Machine Co2 Laser Cutter 90W with 900*600mm Working Area


Application


Application Industry: Model Field(Construction Model,Aviation navigation model, wooden toys), advertising filed,decorative and decorating, craft gift industry, electronic, garments and leather industry, art glass industry, art glass industry,computerized embroidery and clipping, packaging and paper industry.

Main Cutting Materials: Acrylic, density board(MDF), double-color board, paper, plastic, rubber, cloth, wool, crystal, bamboo products, wooden products, etc

Materials Can work With: Organic glass, acrylic board (the paulownia, lightwood), bamboo products, Double-color board, paper, leather, ceramics, textiles, crystal, jade, coconut shells, horn, resin animal sebum, ABS plate, lamp shade and other non-metallic materials


Features


Laser Head


Newly design, More in according with mechanical engineering. Safe and Durable. Simple Operation with high engraving/cutting speed and high laser power convert ratio.


Laser Tube


Adopted famous Reci W2 Co2 laser tube, rated power: 90W, peak power: 100W, long time time and stable


Working Table


Honey Comb Table: applicable to various soft materials with Good adsorption effect and low reflection ratio.


Knife Strip Table: With oxidation treatment and low reflection ratio Ensured cutting quality


Auto Lifting Table for more thickness materials:Maximum Loading 50kgs with 300mm up-down distance.


Beam Path System


Adopting imported focus lens with high luminousness and mirror with high relativity ensure stable power transference.


Motion System


Imported High precision, low friction force and stand wear and linear guide rails and blocks with 3M belt ensured stable transmission, lower noise


Operation System


Advanced USB port RuiDa RDC 6442S DSP control system with large inner memory device and Fast curve cutting and Optimized shortest path function, Greatly improved the working efficiency .


With WIFI connection function, no need to use USB cable, convenient and improving working efficiency


With full-process automatic laser power attenuation compensation , ensuring the performance consistency of engraving/cutting. The High speed motion control program with pre-buffering function enhances productivity more.


Completely compatible with various CAD&CAM softwares such as AuotCAD, CorelDAW, supporting the designs directly exporting. With advanced Color management and defining the working turns with different colors , All or a part work can done in one time.


Rationalized placement of the electronic parts. Optimized heat dissipation effect.


Cooling System


Industrial chiller CW-5000, ensuring the laser tube long time continus working


Technical parameters

Effective working area900*600mm
Laser TypeCo2 sealed-off laser tube
Laser tube power

W2 series, Reci, Beijing

(Rated power: 90W, max. Power: 100W)

Working tableHoney comb and knife strip, double working table
Lifting tableAutomatic up and down, 300mm
Driver mode3 phases stepper motor and Driver, Yako brand
Guide railLinear square guide rail ( Hiwin,Taiwan)
TransmissionBelt transmission
Control panelEnglish
Laser output control1-100% software setting
Engraving speed0-60000mm/min
Cutting speed0-10000mm/min
Control systemRuiDa RDC6442S
Control softwareRDWorks V8 with WIFI router
Wifi connectionYes
Design software when deliveryCorelDraw
Control panelDSP offline
Resolution accuracy< 0.01mm
Location precision< 0.01mm
Highest scanning accuracy2500DPI
Type of coolingIndustrial chiller CW-5000 cooling
Water protection systemYes
FocusAuto focus
Blow-off system

Air pump for the laser head

Air blower for the machine

Working temperature0-45 °C
Operating humidity5-95% (without condensed water)
Supporting picture formatPLT,DST,DXF,BMP, DWG,AI,LAS,etc
Voltage

AC 110V+10% 50/60Hz, single phase or

AC 220V+10% 50/60Hz, single phase or

CertificateCE/FDA

Reference Parts Photos

Co2 laser head with infrared positioning

Co2 laser head with infrared positioning

Reci W2 90W Co2 laser tube

Reci W2 90W Co2 laser tube

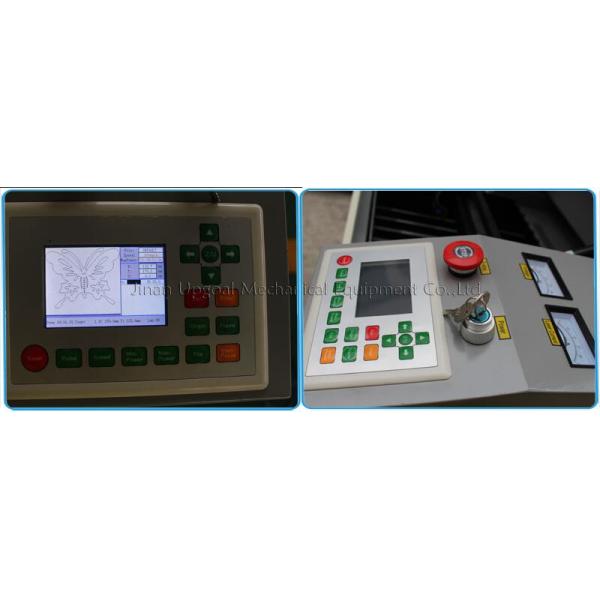

RuiDa control panel

RuiDa control panel

Honey comb and knife strip double working table

Honey comb and knife strip double working table


Control cabinet & WIFI router


Yako three phases motor and driver


Auto lifting table & auto focusing

Linear square guide rail & belt transmission, dual LED


USB disk, air pump & air blower & light button

Accessories

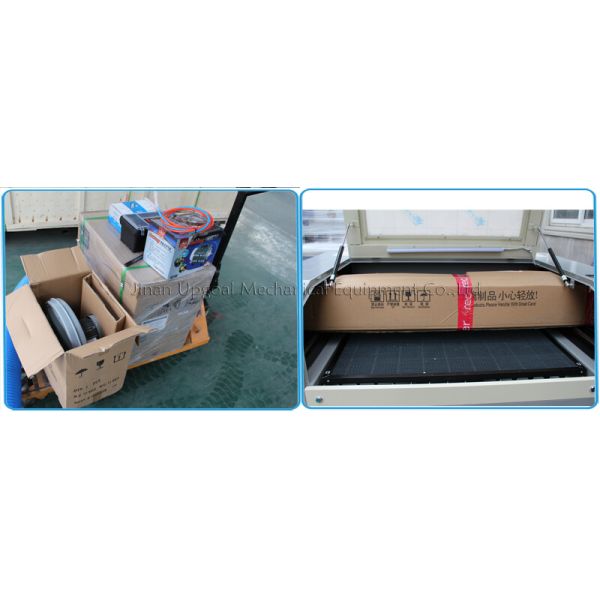

Packing

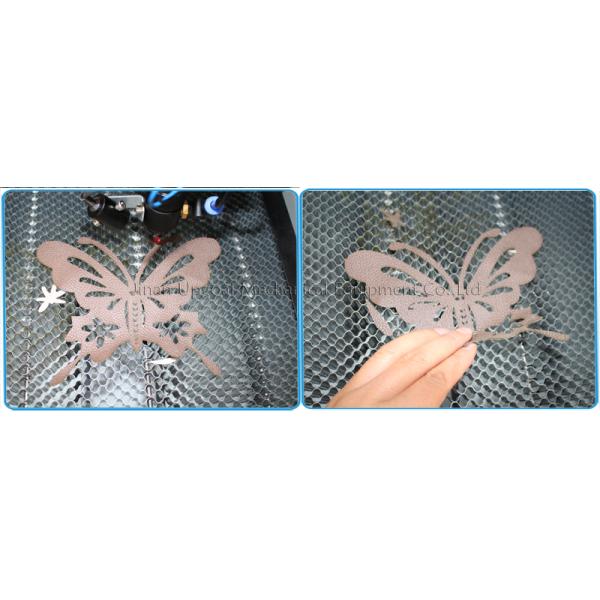

Reference Sample Photos


Reference Working Videos

https://www.youtube.com/watch?v=dGiAY1g472A


For more information, just feel free to contact us!
